GALLERY

OUR WORK.

Hammers and cylinders from our shop: as received, during teardown and ready to go back to work.

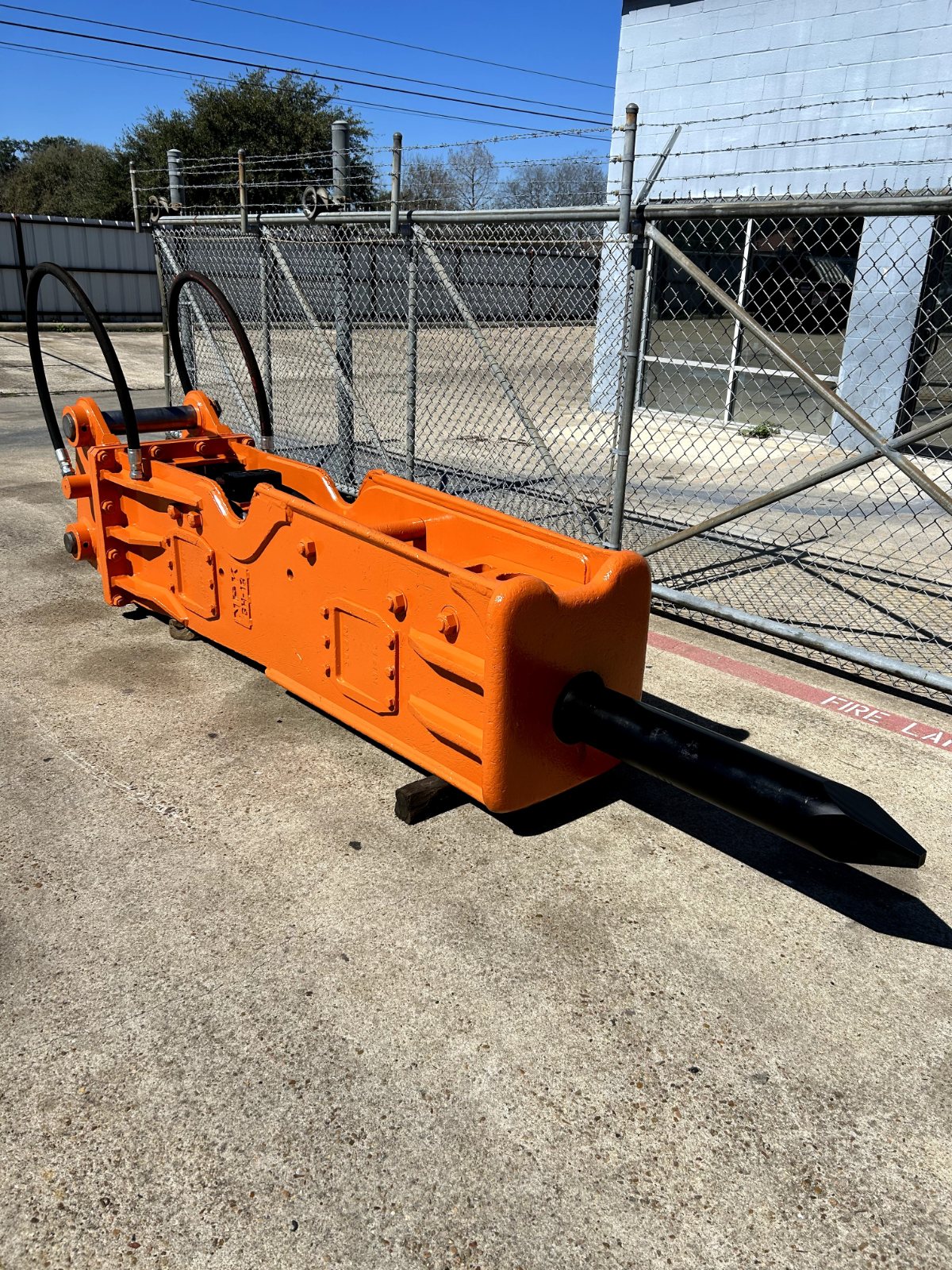

Rebuilt orange hydraulic hammer with a new tool
HammersRebuilt and ready to shipA hammer after service: reassembled, repainted and fitted with a tool before it goes back to the customer.
Worn hydraulic hammer on the shop floor before service
HammersHow they arriveHammers come in worn, leaking or not firing. Every job starts with the unit exactly as it was received.

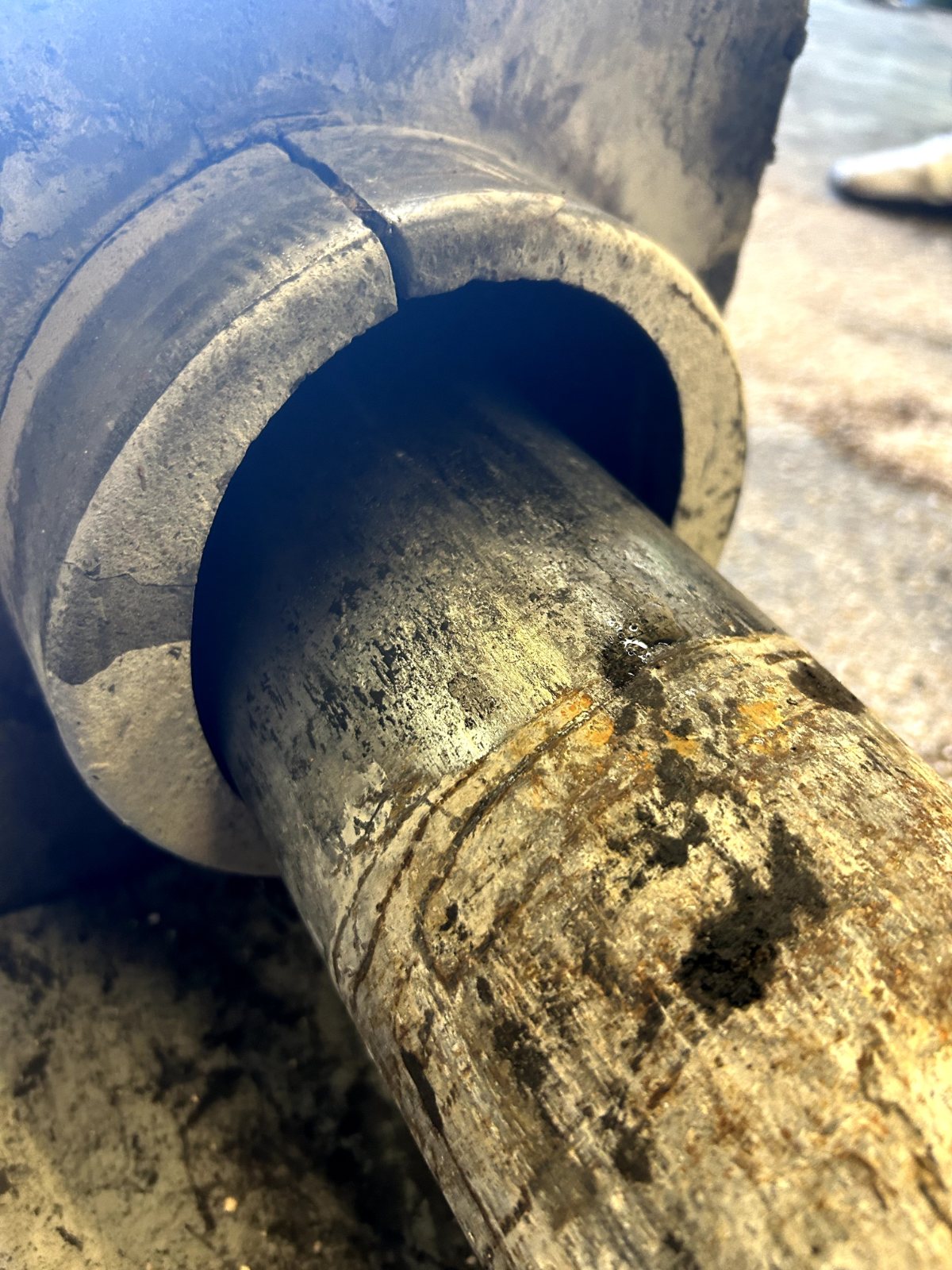

Close-up of a worn hammer tool and bushing
Teardown & inspectionWorn tool and bushingWear like this at the tool and bushing is what inspection is for. Caught here, it does not reach the piston.

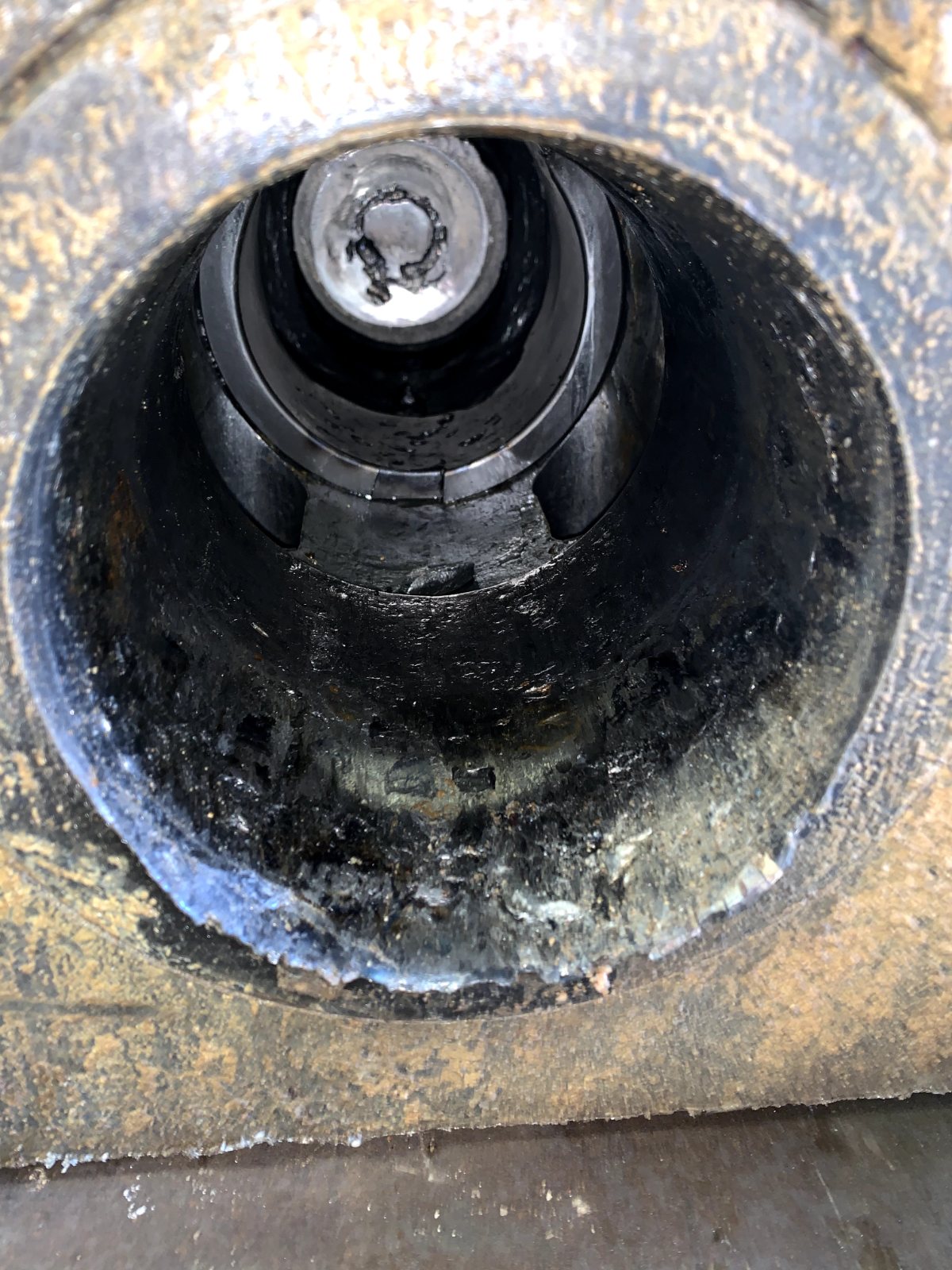

Inside view of a hydraulic hammer housing during inspection
Teardown & inspectionInside the housingInternal surfaces are checked for scoring, wear and damage before the repair scope is set.

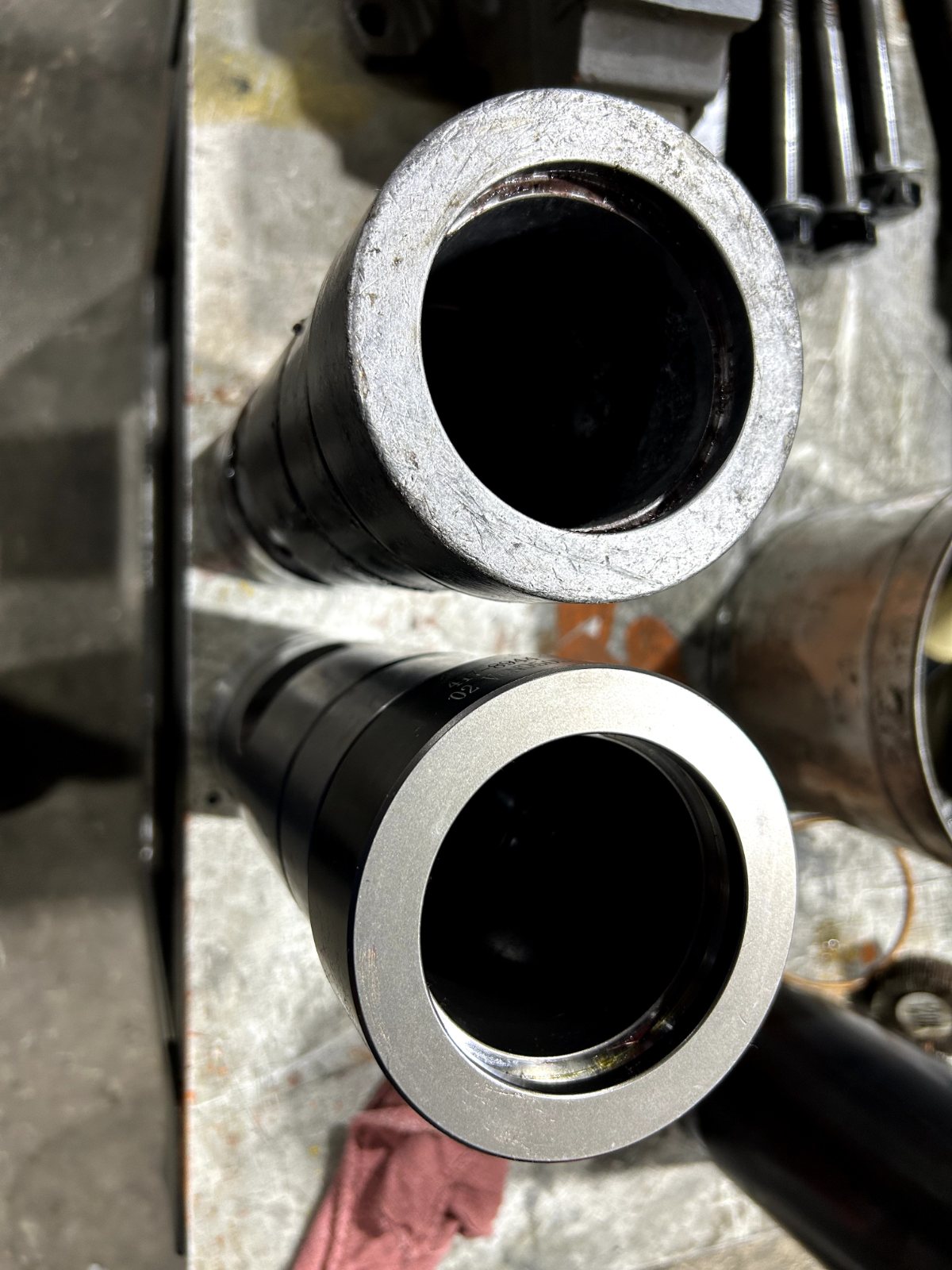

New bushings installed in a hydraulic hammer
RepairNew bushings fittedWorn bushings are replaced so the tool runs true and the hammer hits where it should.

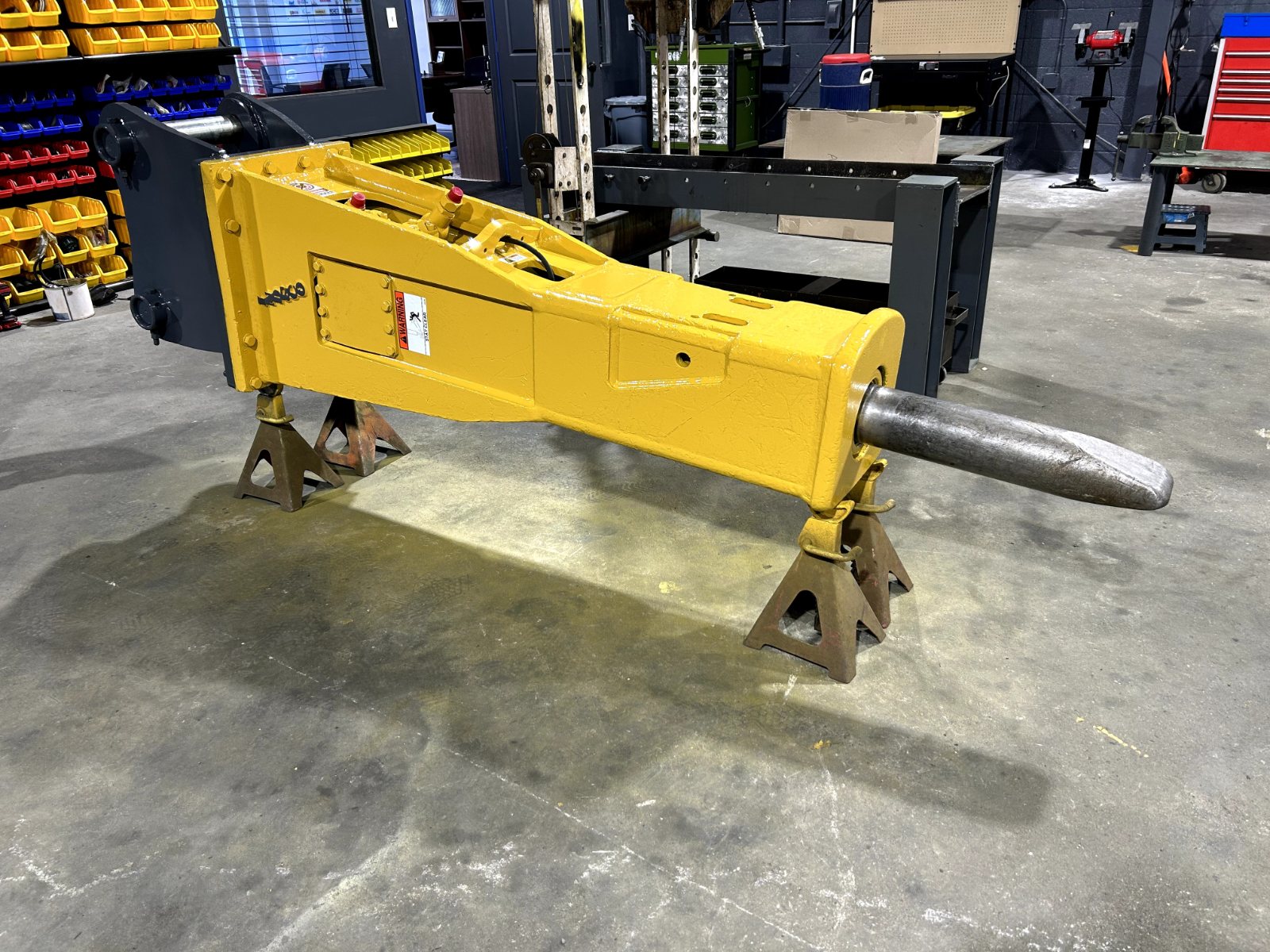

Yellow hydraulic hammer on stands in the workshop
HammersRebuild in the shopA rebuilt hammer on stands in the shop after reassembly and paint.

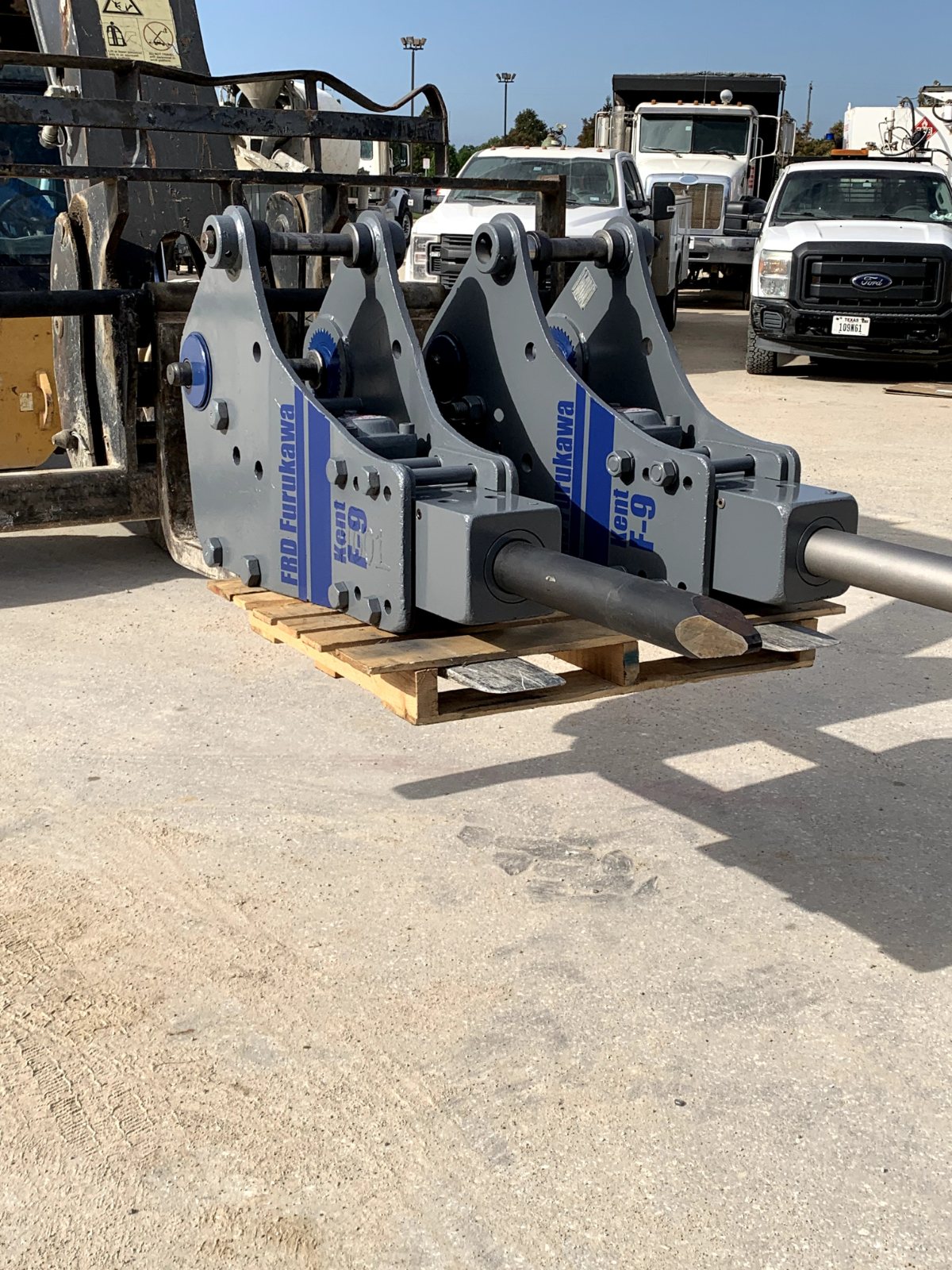

Row of serviced hydraulic hammers on a pallet
HammersMore than one unitSeveral hammers serviced together and staged for pickup.
Large yellow hydraulic cylinder on stands in the workshop
Hydraulic cylindersCylinder repairA large hydraulic cylinder on stands in the shop after repair and paint.
Four repaired hydraulic cylinders on a pallet
Hydraulic cylindersCylinder setsCylinders in different sizes repaired and palletized to go back on the machine.
Repainted small hydraulic cylinders on a pallet
Hydraulic cylindersSmall cylinders, same processDisassemble, inspect, repair and reseal. Smaller cylinders get the same attention as the big ones.

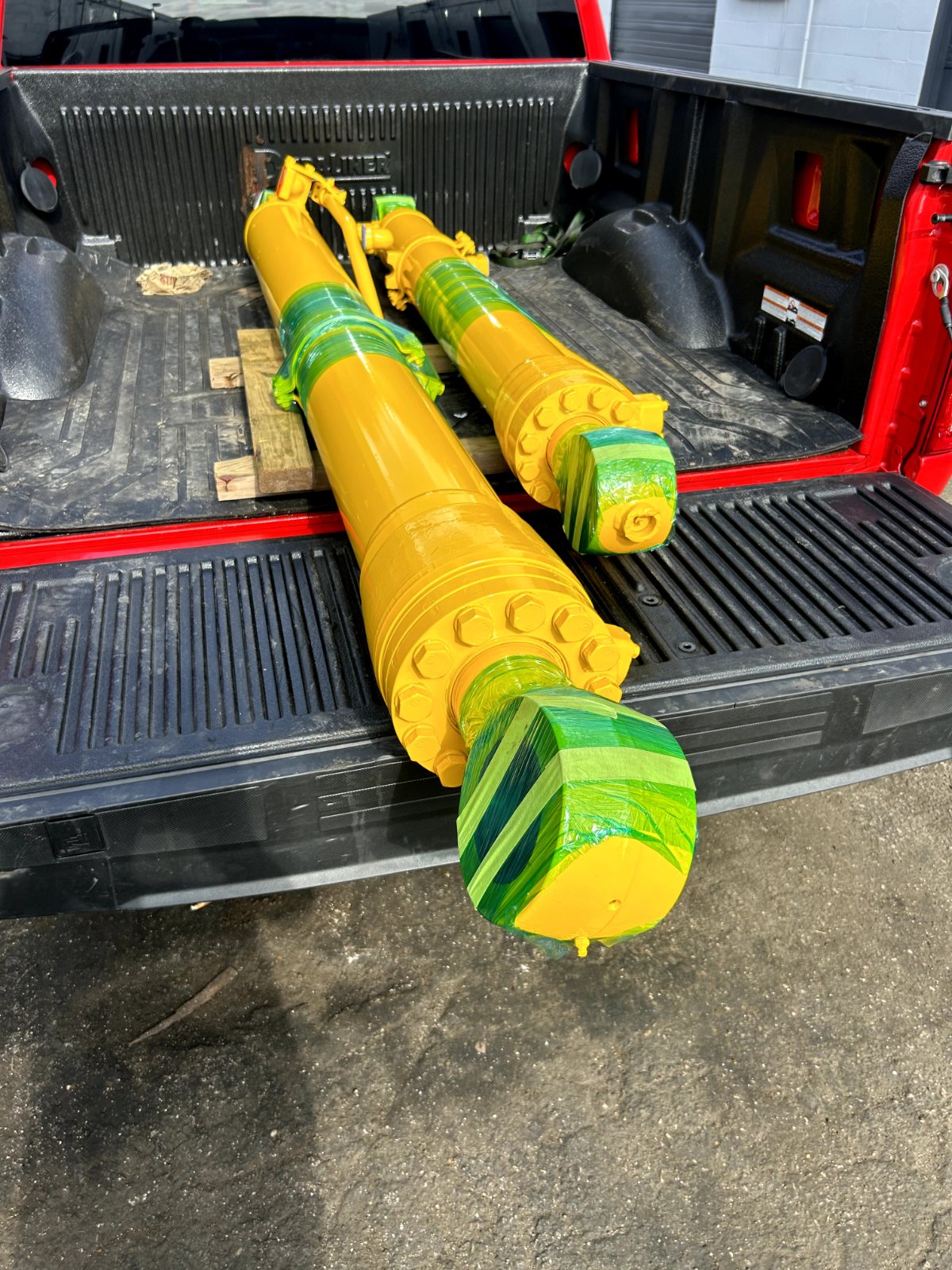

Wrapped hydraulic cylinders loaded in a truck bed
Hydraulic cylindersProtected for the tripRod ends and ports are wrapped before finished cylinders leave the shop.

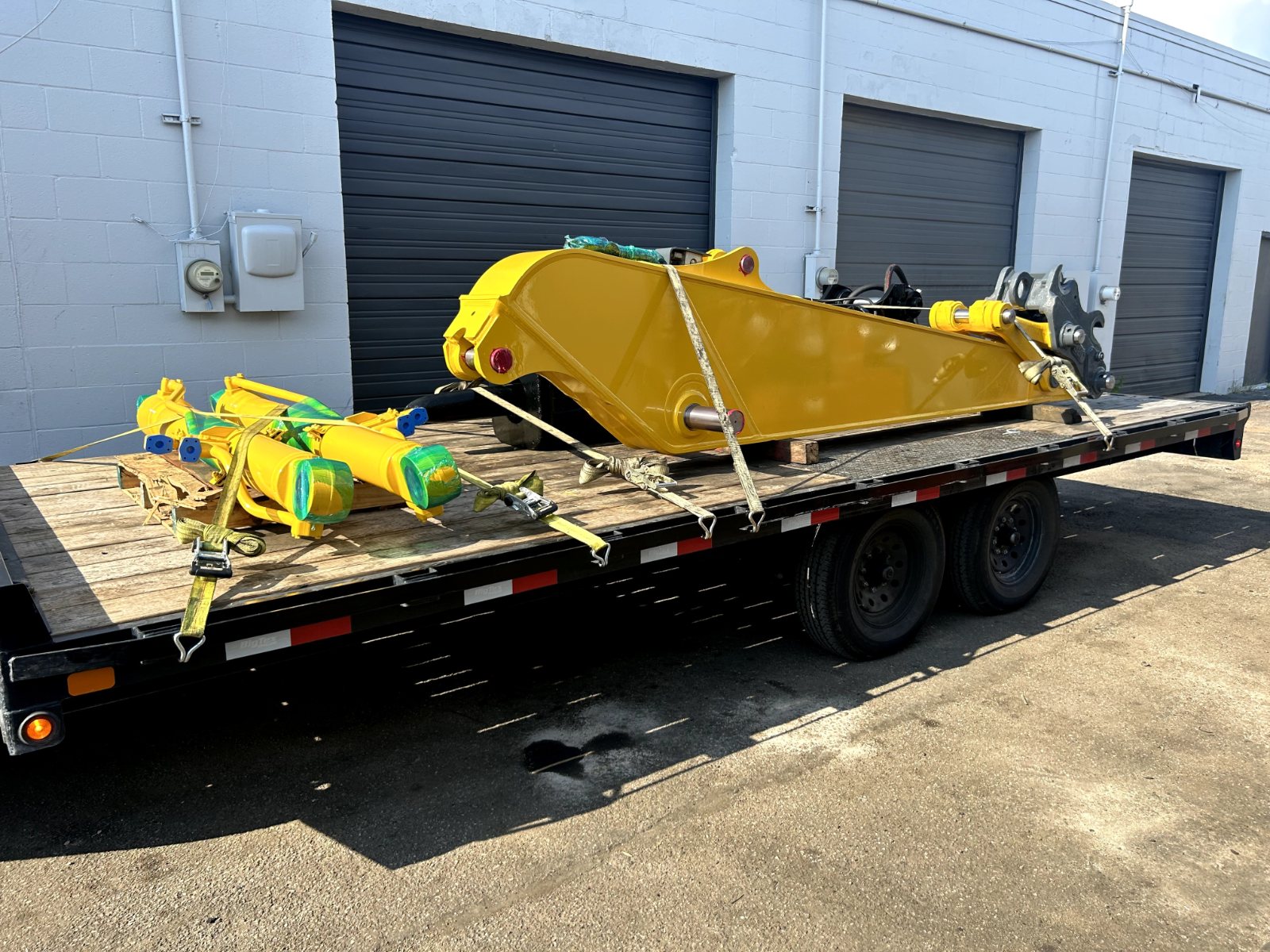

Repaired hydraulic equipment strapped to a flatbed trailer
Return to workLoaded for deliveryFinished equipment strapped down on the trailer and headed back to the job.
